ROMER Absolute Arm 7730 portable measuring arm
Built December 2016. Six axes, 3.0 m range, ±0.040 mm volumetric accuracy. With PC-DMIS, laptop, probes, tripod and case.
- Make
- ROMER
- Model
- Absolute Arm 7730
- Year
- 2016
- Location
- Yambol, Bulgaria
Photos
Description

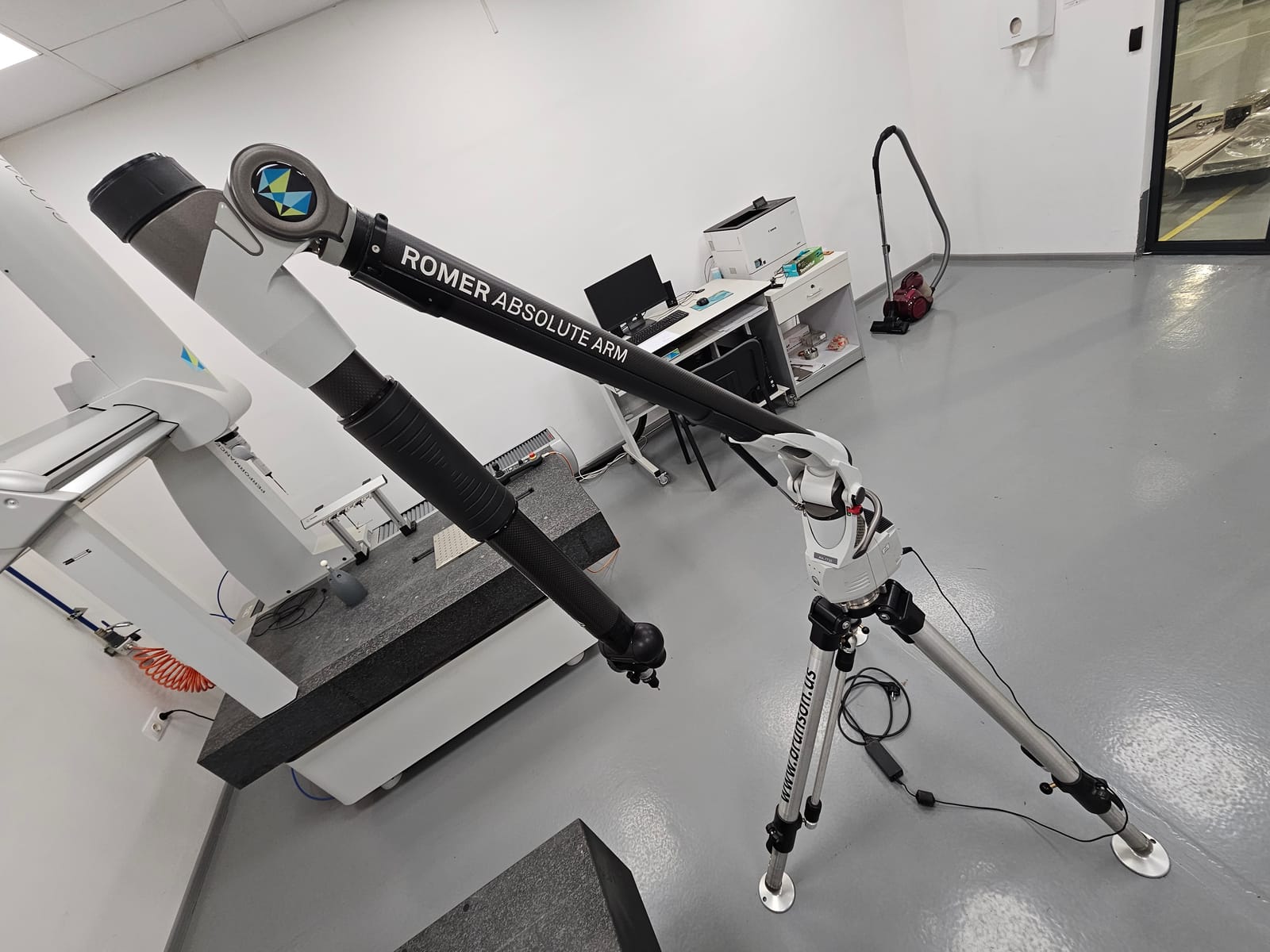

Hexagon ROMER Absolute Arm 7730 portable measuring arm (type RA-7730-4), built in December 2016: a six-axis portable CMM with a 3.0 m measuring range, ±0.040 mm volumetric accuracy and 0.026 mm point repeatability. The arm weighs 8.3 kg.

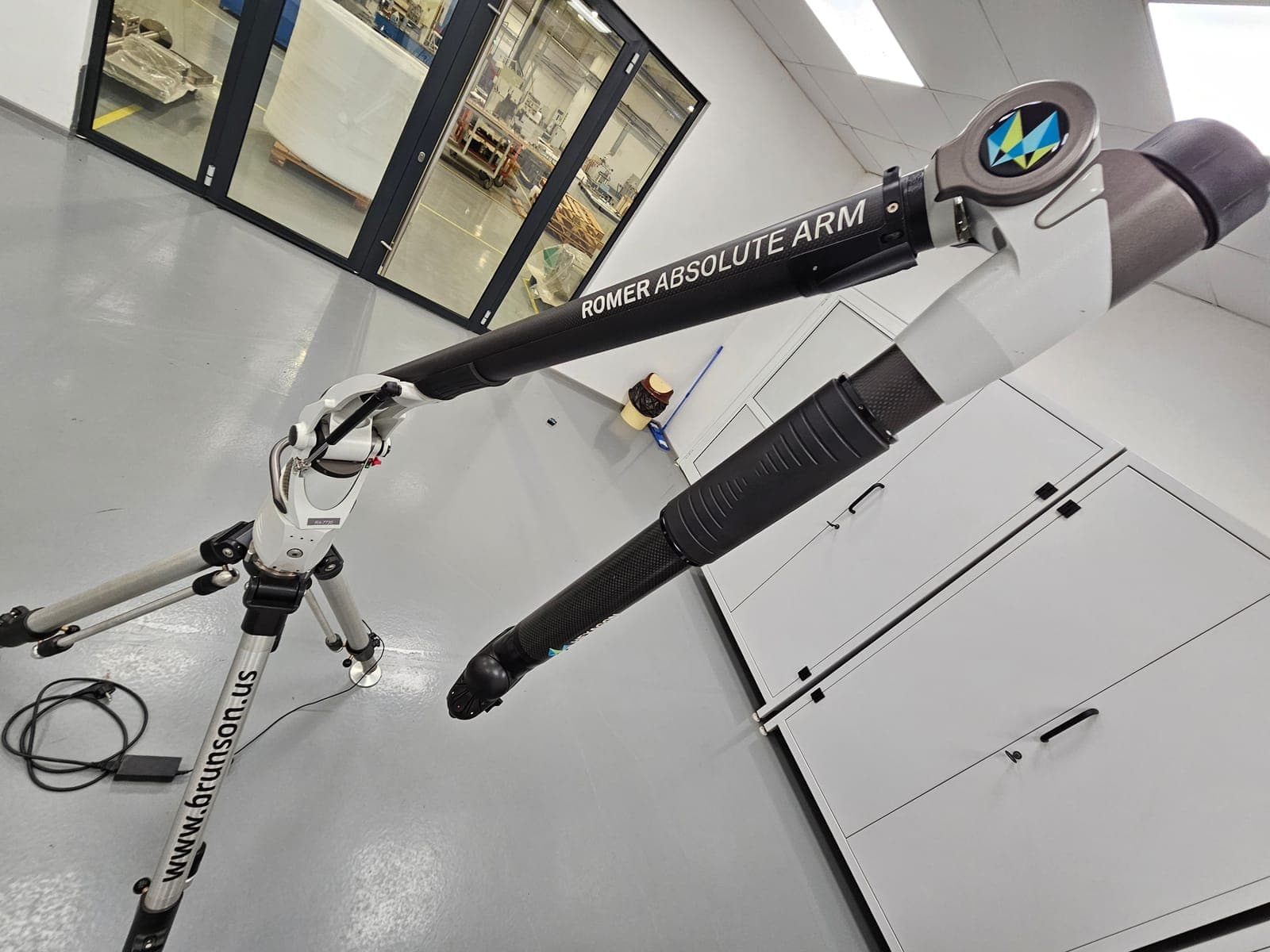

Absolute encoders, so it measures from switch-on with no homing. Zero-G counterbalance for one-handed use, carbon-fiber tubes, a main axis that turns without a stop, and audio and vibration feedback in the wrist. Built-in work light and camera.

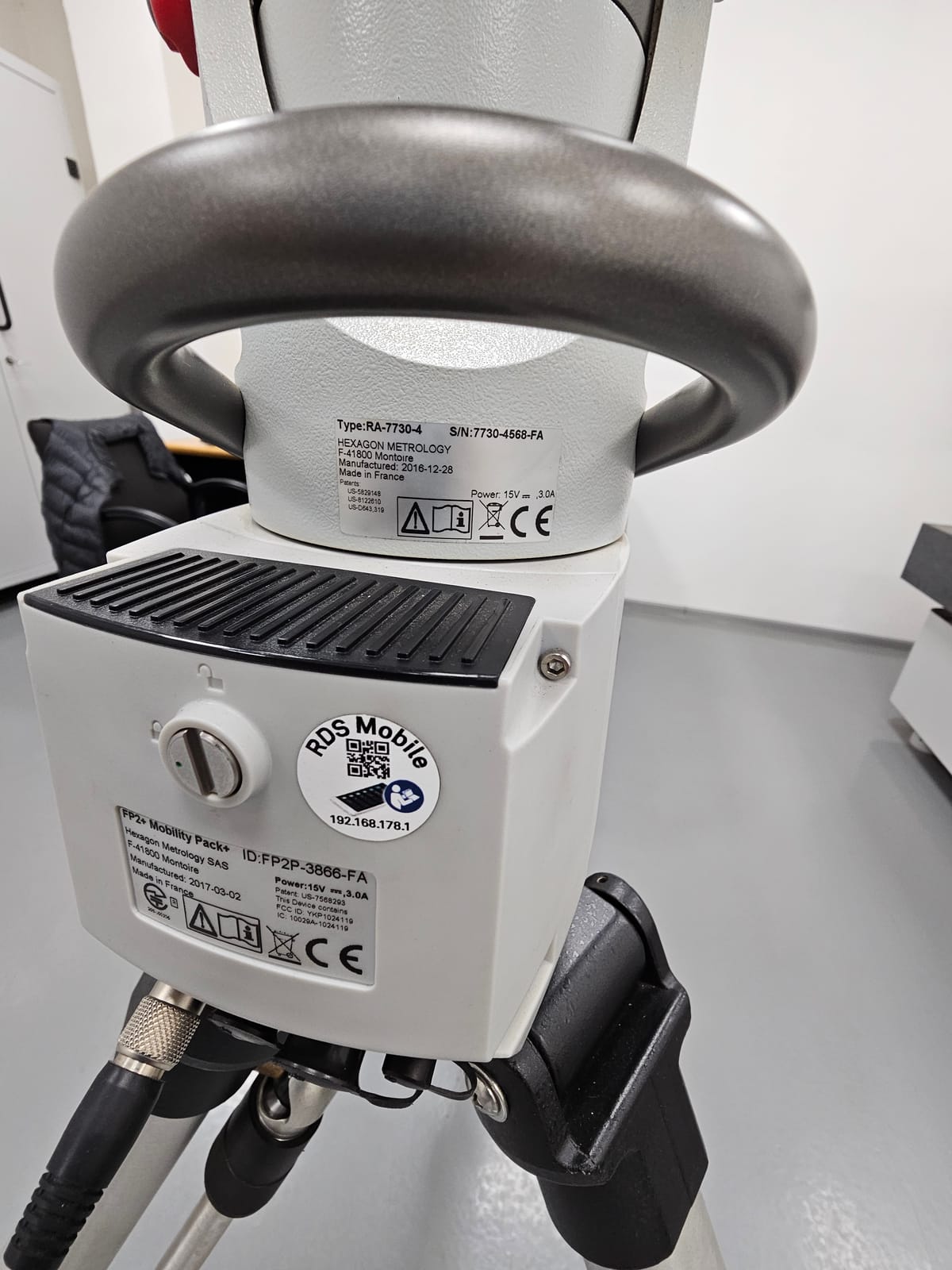

The FP2+ Mobility Pack+ (2017) runs it on batteries over Wi-Fi, and it mounts on the included magnetic base or tripod.
Sold with PC-DMIS measurement software, a laptop set up for the arm, ROMER RDS control software, probes and extensions, a calibration sphere and bar, and a transport case. Ex works Yambol, Bulgaria, plus VAT. The arm can be demonstrated at our plant by appointment.
Condition
Calibrated regularly.
Included
- PC-DMIS measurement software
- Laptop configured for the arm
- ROMER RDS arm control software
- FP2+ Mobility Pack+: rechargeable batteries and Wi-Fi
- Magnetic base

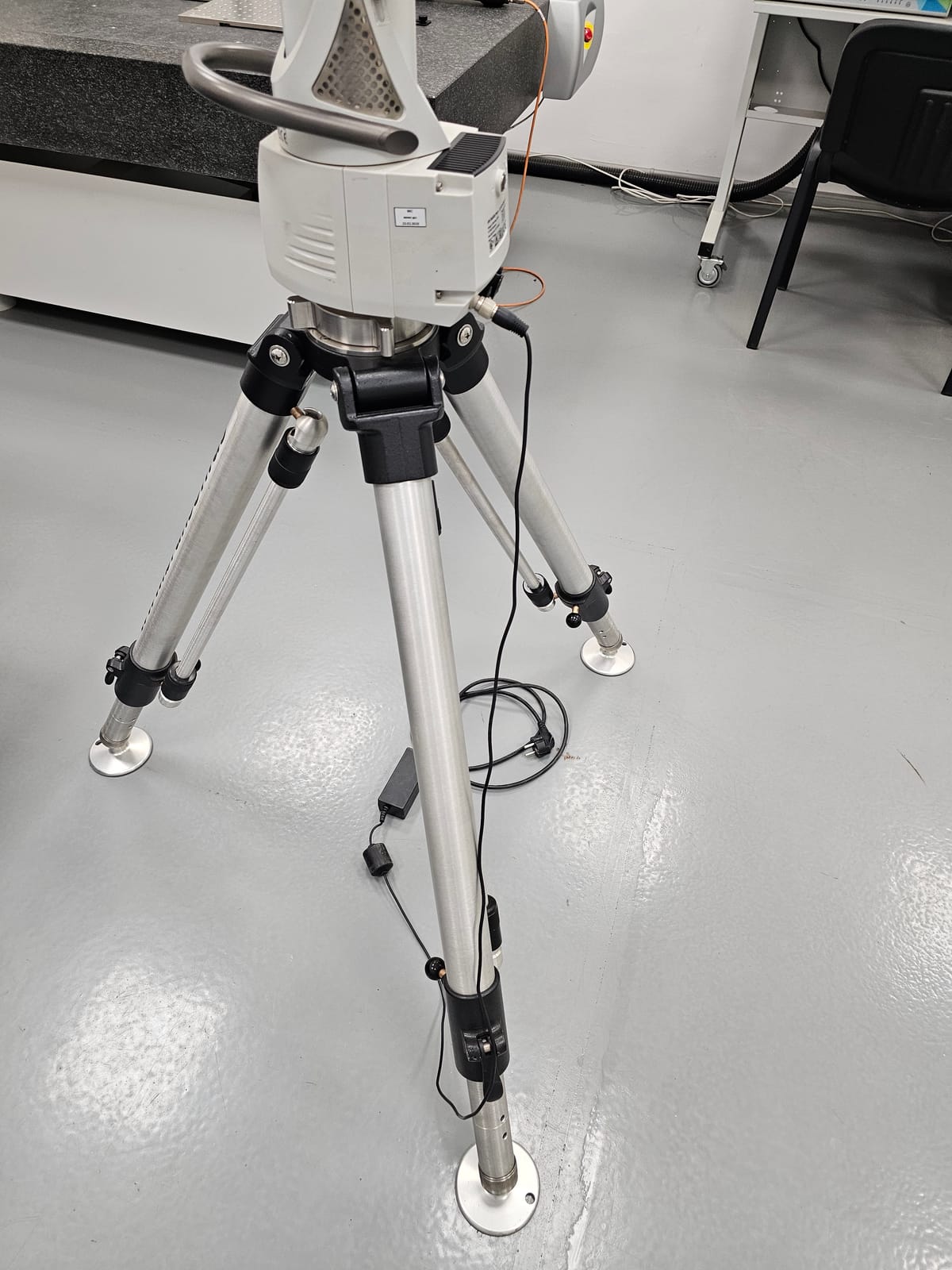

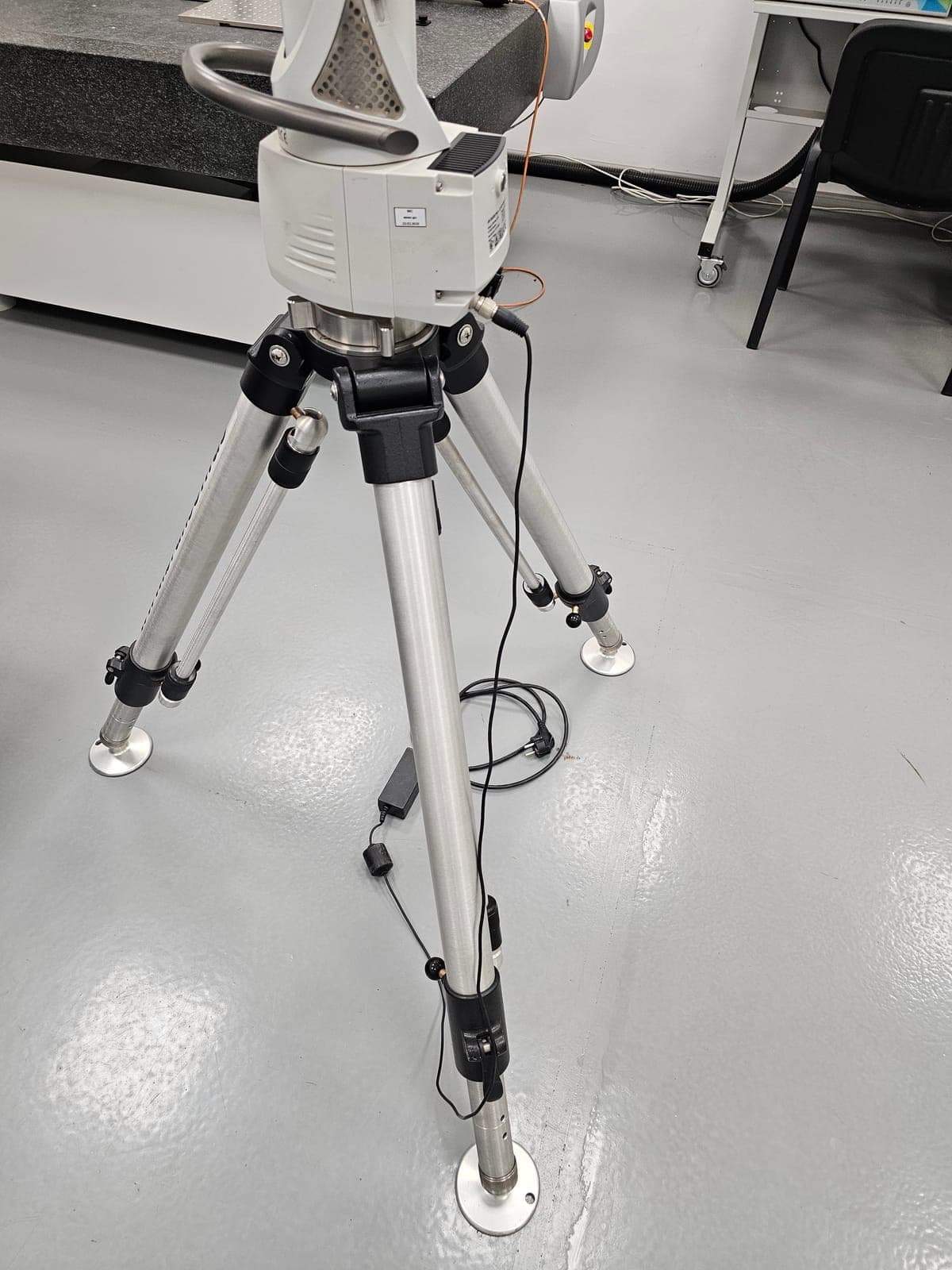

- Portable tripod, height 75–119 cm
- Extensions: 130, 150, 180 and 200 mm

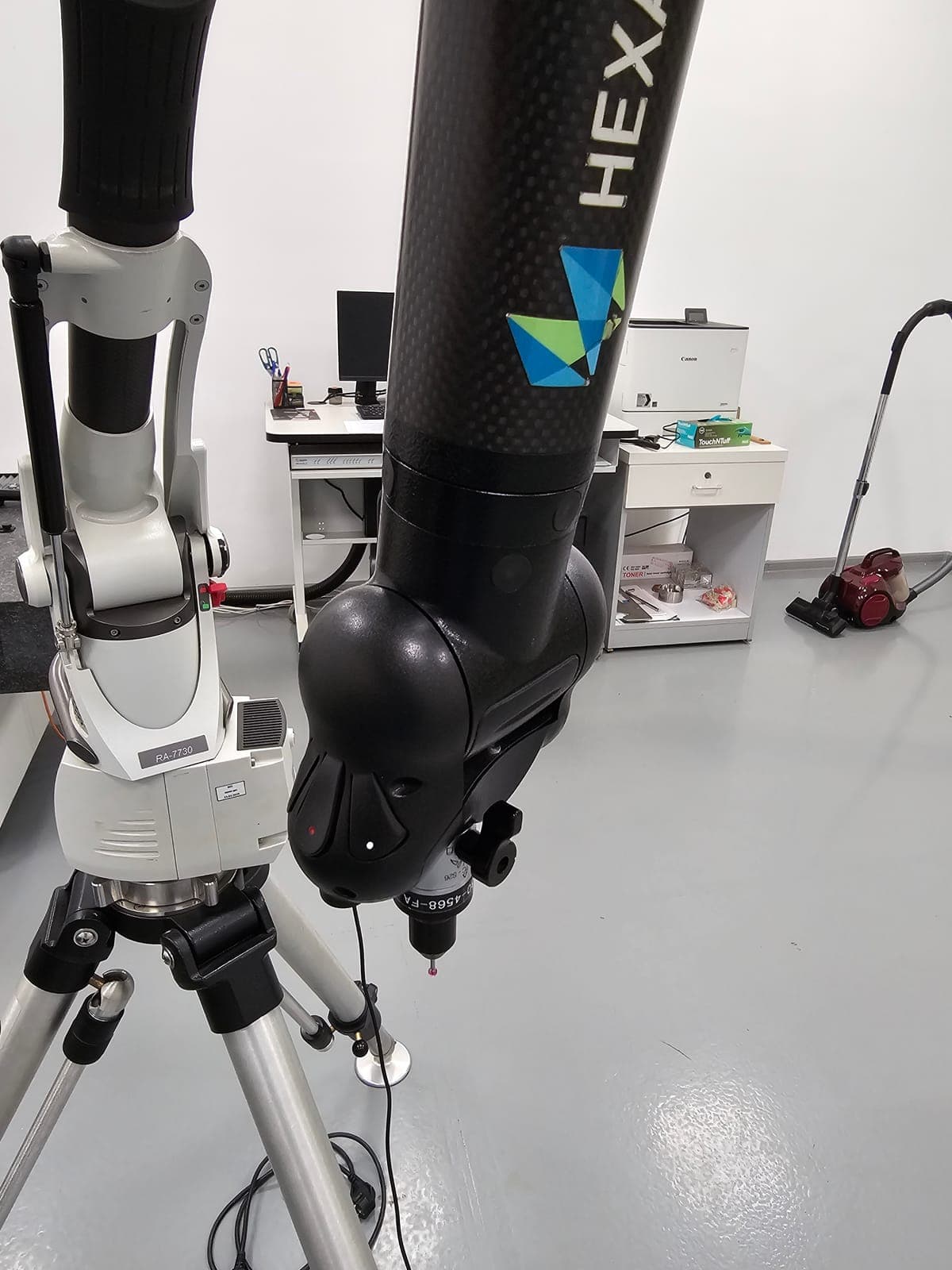

- Probes: ruby balls 2–6 mm, 15 mm steel ball
- TKJ connectors (2)
- Calibration sphere and bar

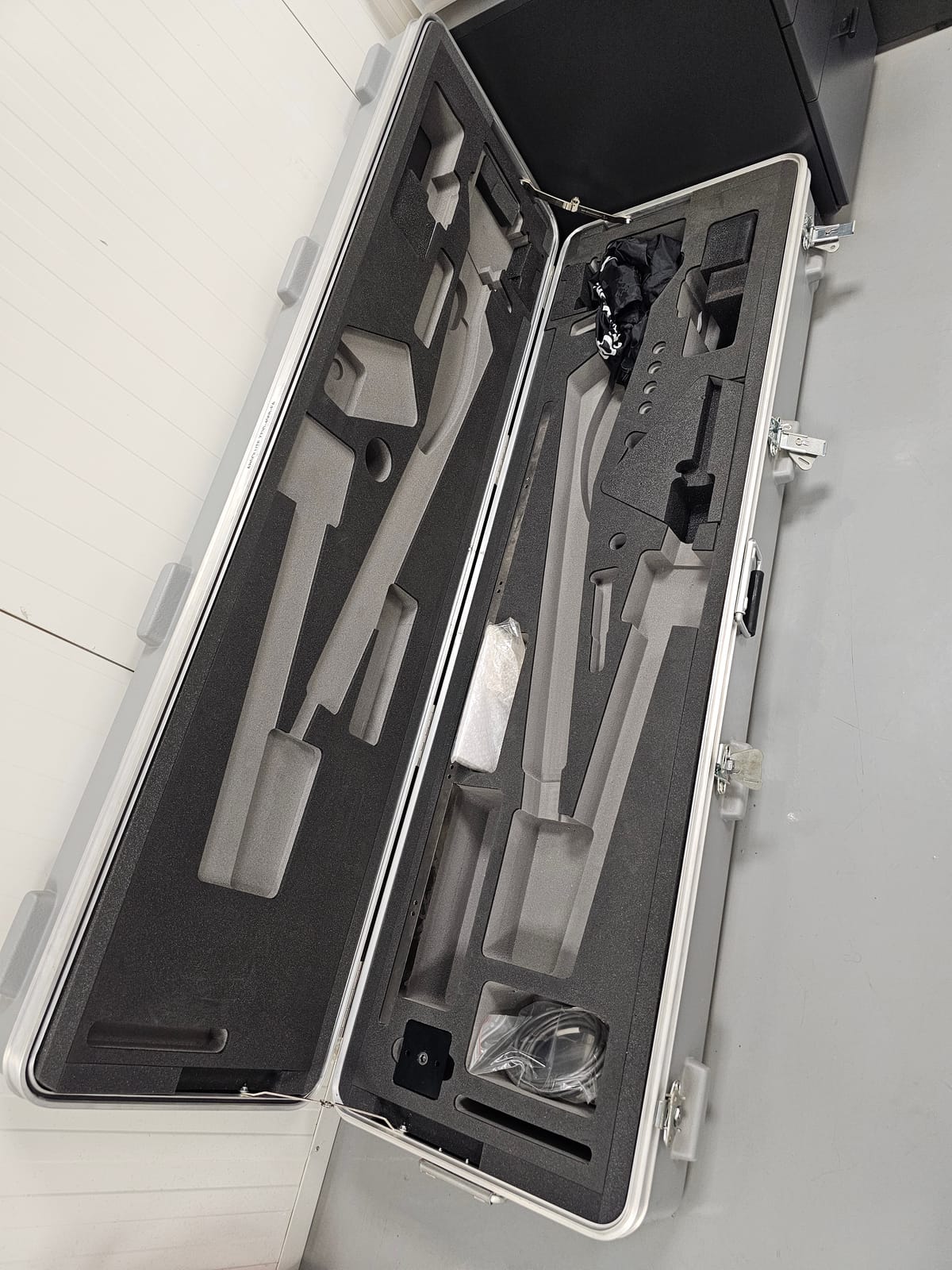

- Transport case
Specifications
| Type | RA-7730-4 |
|---|---|
| Axes | 6 |
| Measuring range | 3.0 m |
| Volumetric accuracy | ±0.040 mm |
| Point repeatability | 0.026 mm |
| Encoders | Absolute — no homing |
| Arm weight | 8.3 kg |
| Power supply | 110–240 V |
| Operating temperature | 0–50 °C |
| Accuracy specified at | 20 ± 2 °C, on a ROMER base or magnetic stand |
| Software | PC-DMIS, ROMER RDS |
