Machine park
Twenty-one processes under one roof, from sheet coming off the laser to a coated, measured and leak-tested assembly. We reinvest continuously in production technology.
- Processes
- 21
- m² of production
- 25 000
- Fiber laser
- 12 kW
- mbar·l/s leak rate
- 10⁻¹⁰
Cutting
Sheet and plate brought to size and shape, in steel, stainless and aluminium.

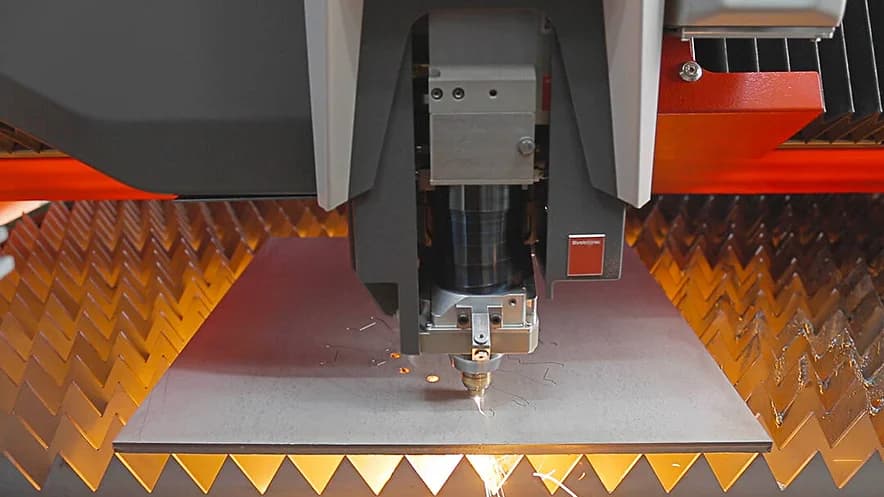

Laser Cutting
- Bystronic ByStar Fiber 12 kW
- Mazak Optiplex

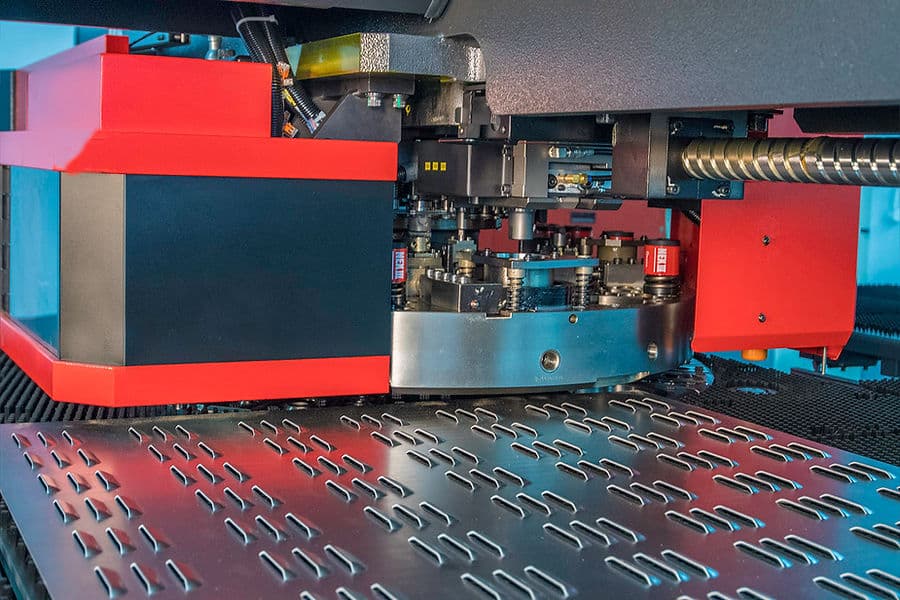

Punching
- Amada EMZ 3612

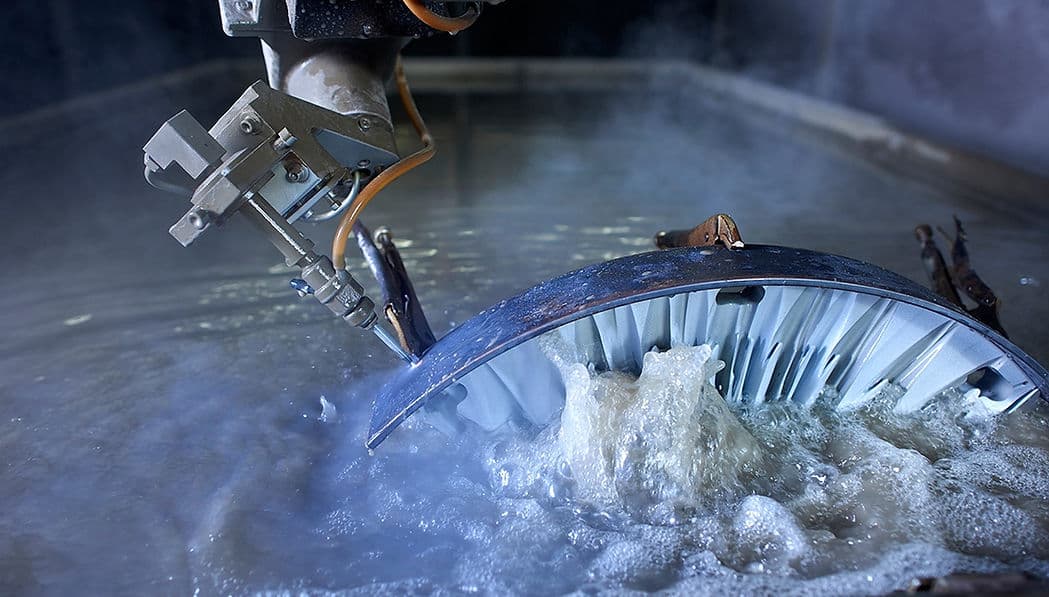

Waterjet Cutting
- CMS Idroline S
Forming
Bending, rolling and pressing, with laser angle measurement on the main press brake.

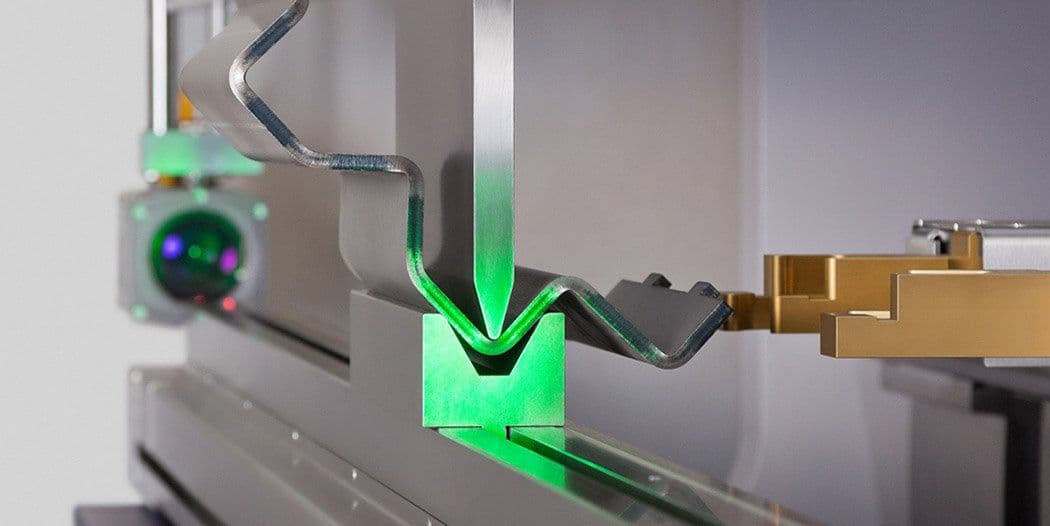

Bending
- Bystronic Xpert 150, laser angle measurement
- Safan Darley 4100/200
- Ermaksan DNC 150

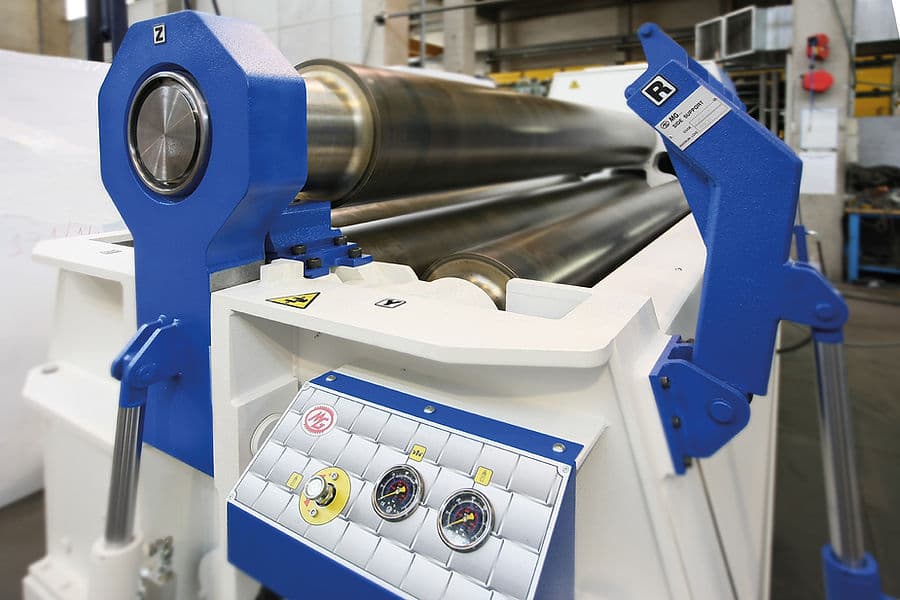

Rolling
- MG M 2010 B, 4-roll plate bending
Stamping
- 400 ton hydraulic press
- 200 ton hydraulic press
Welding and joining
Robotic cells for repeatable series, manual stations for one-offs and rework, and mechanical fastening.

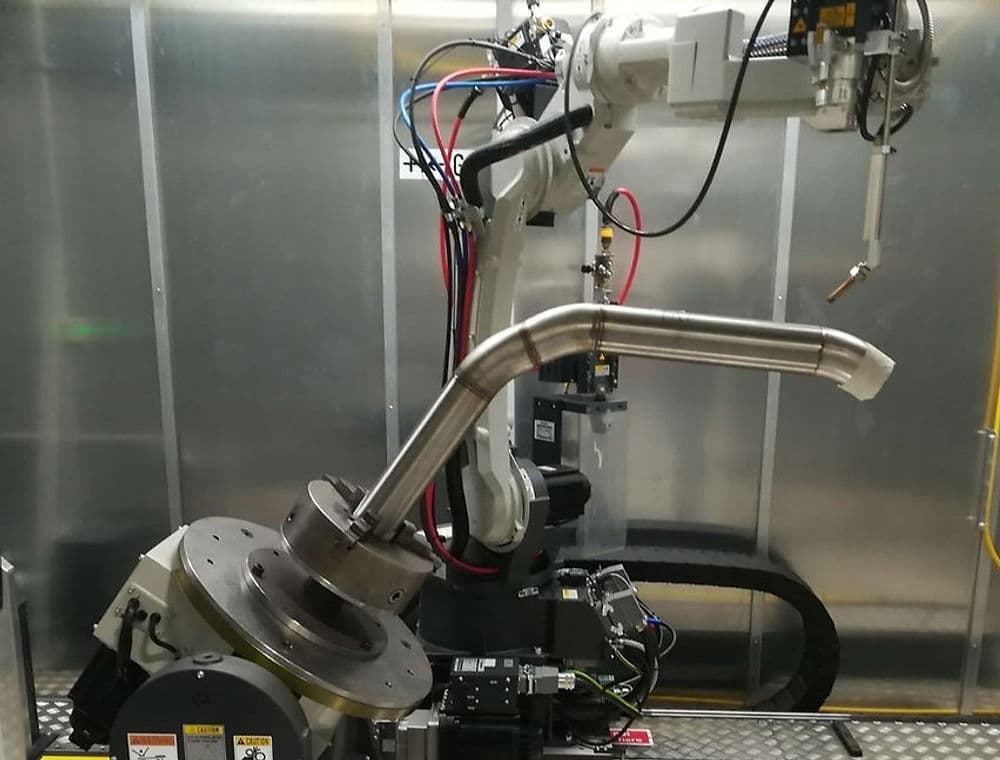

Laser Welding
- Panasonic LAPRISS robotic cell

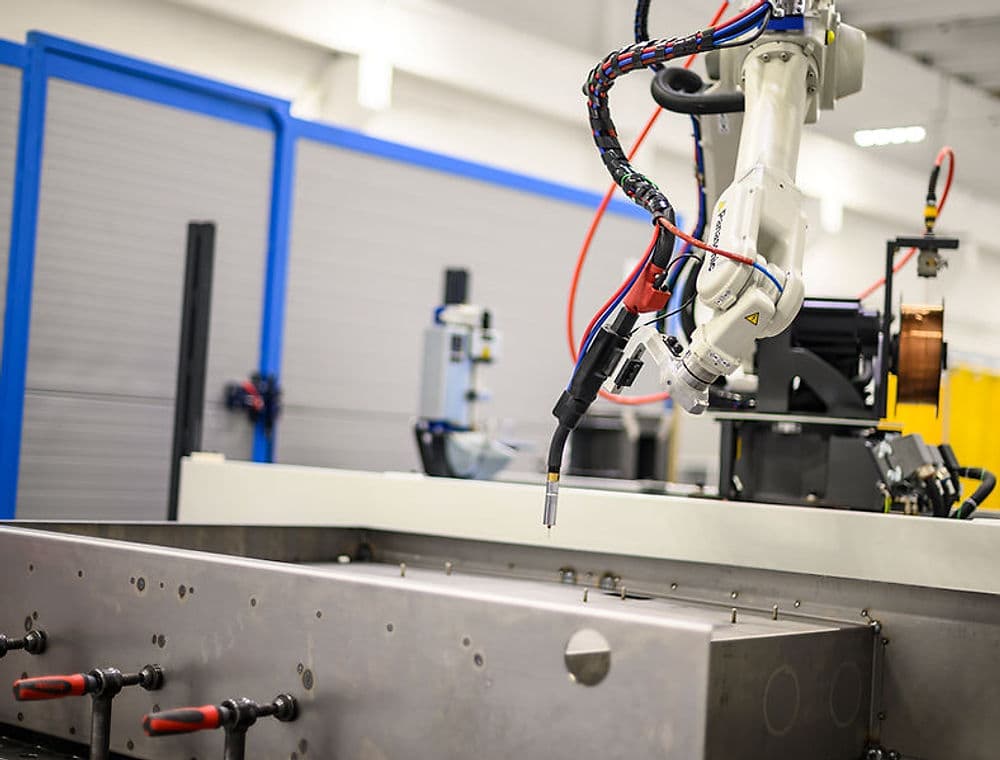

Robotic Welding
- Panasonic Tawers robotic cell, MIG/MAG and TIG

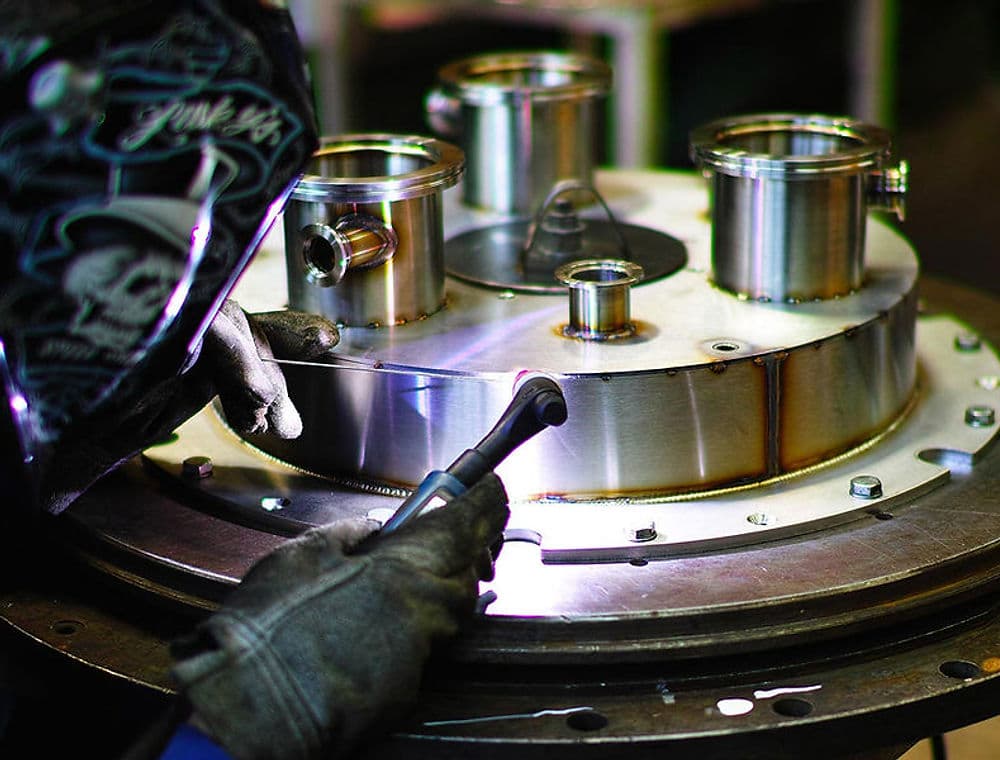

Manual Welding
- 2 × Fronius TIG
- 12 × Miller TIG
- 3 × Miller MAG 300 A
- 3 × ESAB MAG

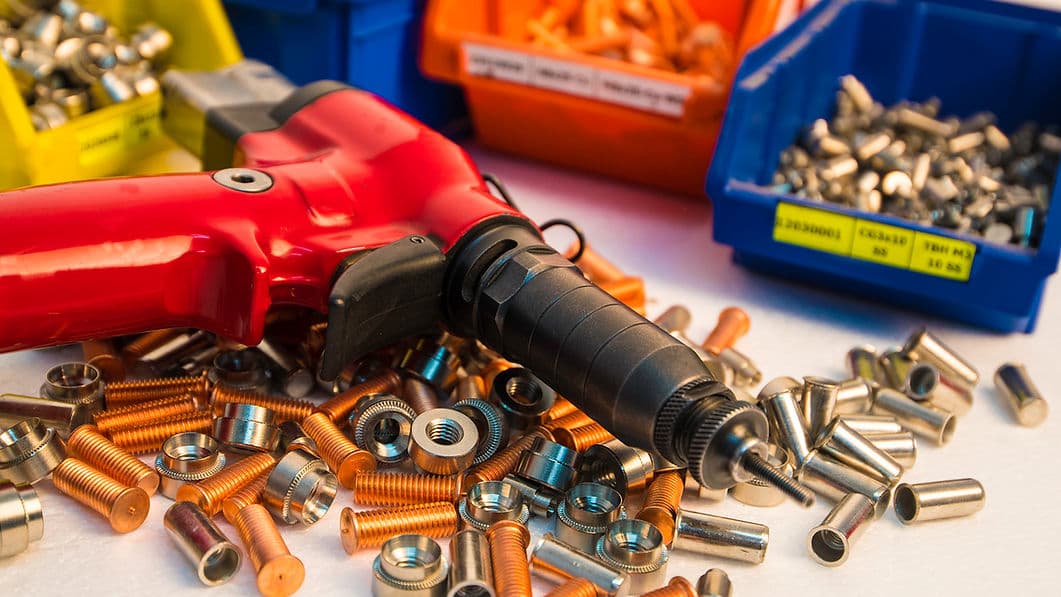

Joining
- Portal hydraulic press
- Pneumatic fastening gun
- Stud welding system
Machining
5-axis milling and CNC turning of components and welded assemblies.

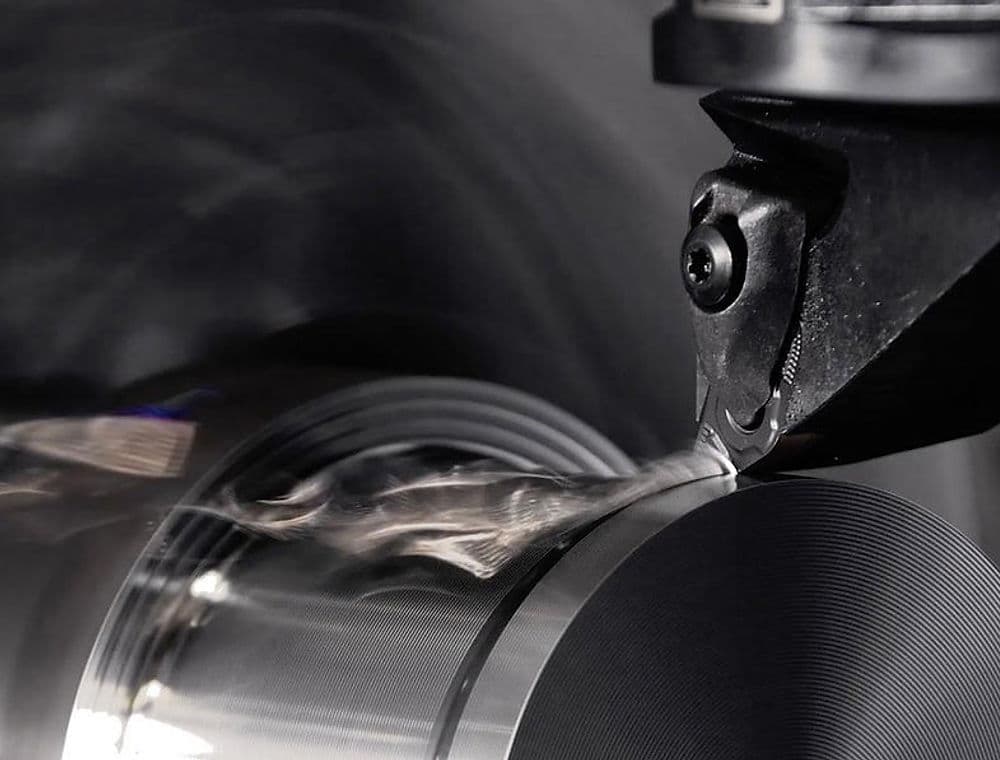

Turning
- Mazak QTS250 CNC lathes
- Doosan Puma 4100 CNC lathes
- Conventional lathes

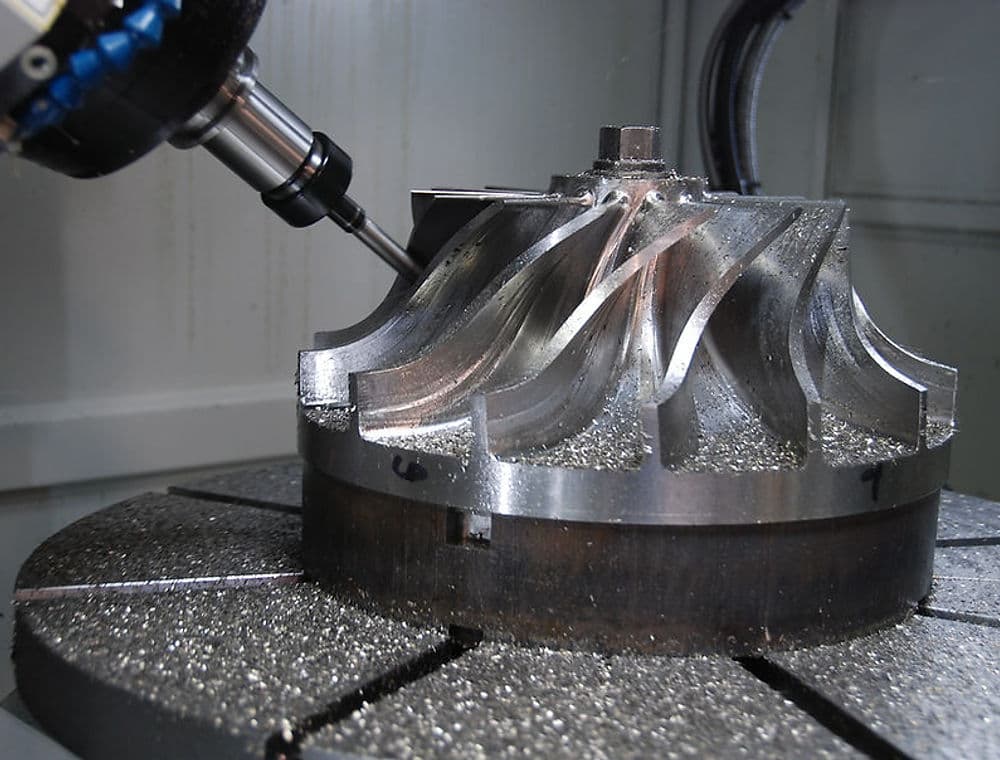

Machining
- Mazak Integrex i500-V, 5-axis
- Mazak Variaxis, 5-axis
- Haas VF6-SS, 5-axis
- Haas VF4-SS, 4-axis
- Conventional mills
Surface treatment
Everything between a welded part and a finished one, in-house: edges, pre-treatment, coating.

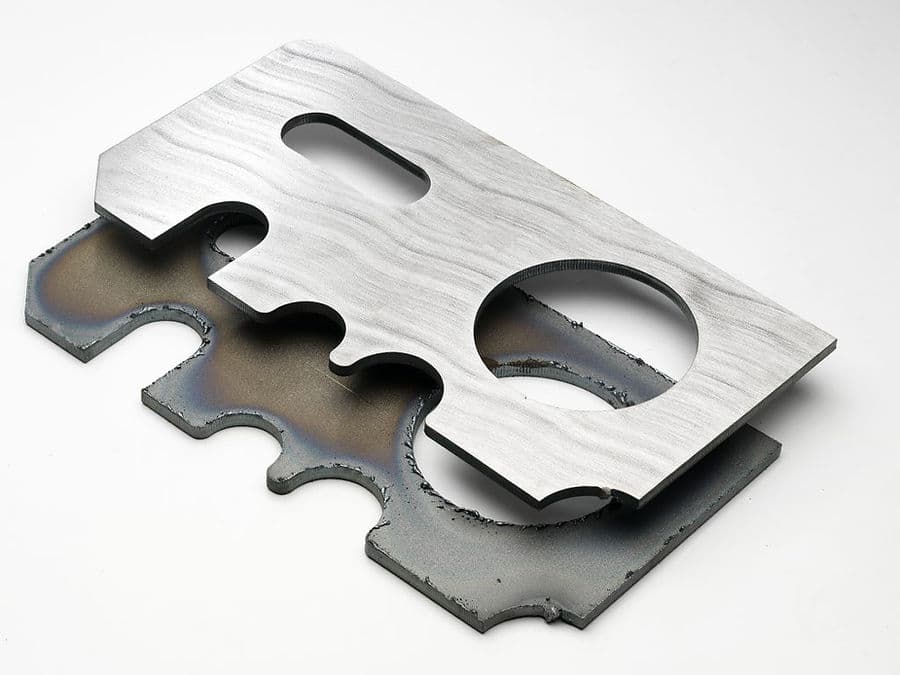

Deburring
- SCM 4-station, stainless steel
- SCM 3-station, mild steel

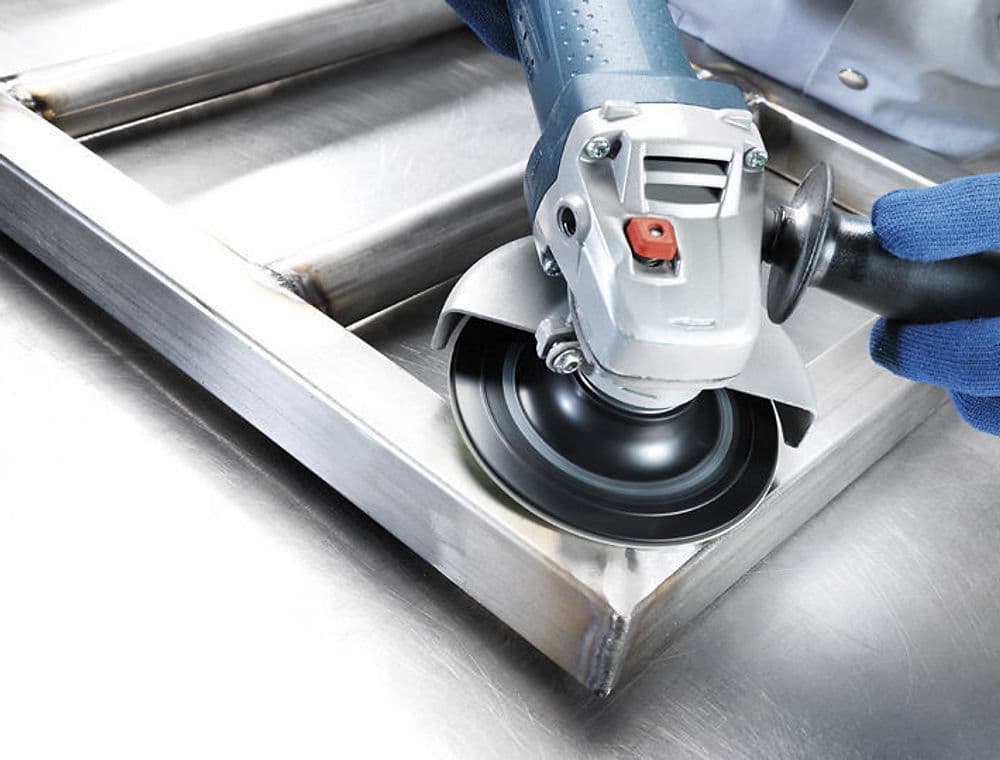

Grinding
- Angle grinders, polishing machines, high-speed grinders
- Belt sanders, vibration sanders

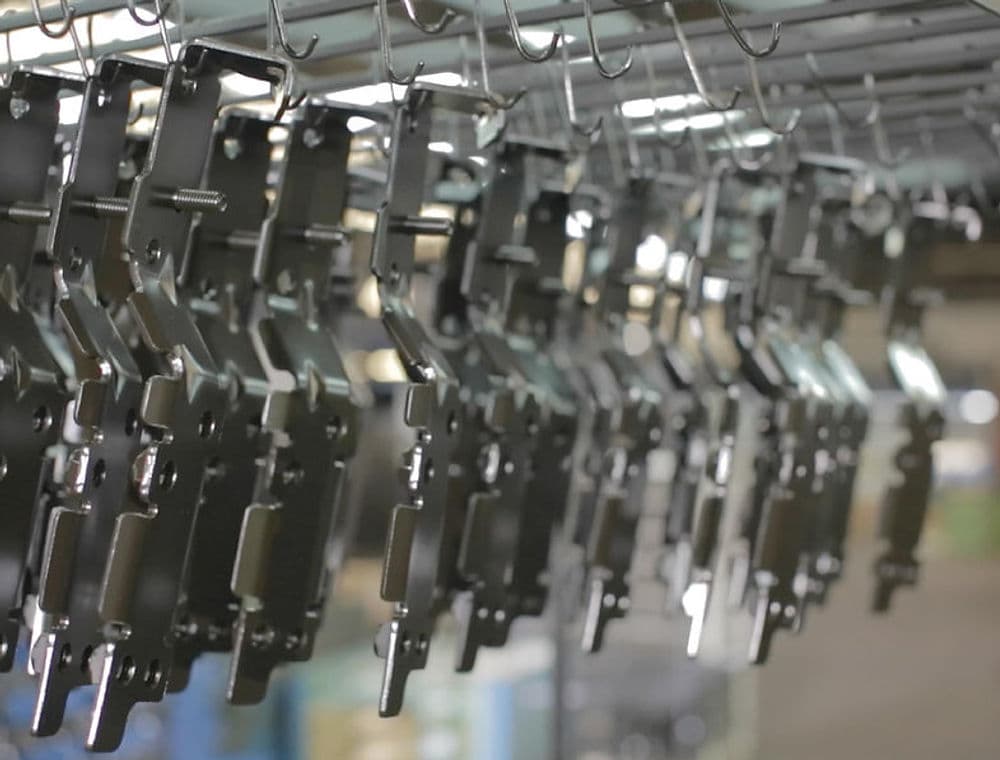

Pre-treatment
- Dipping tanks

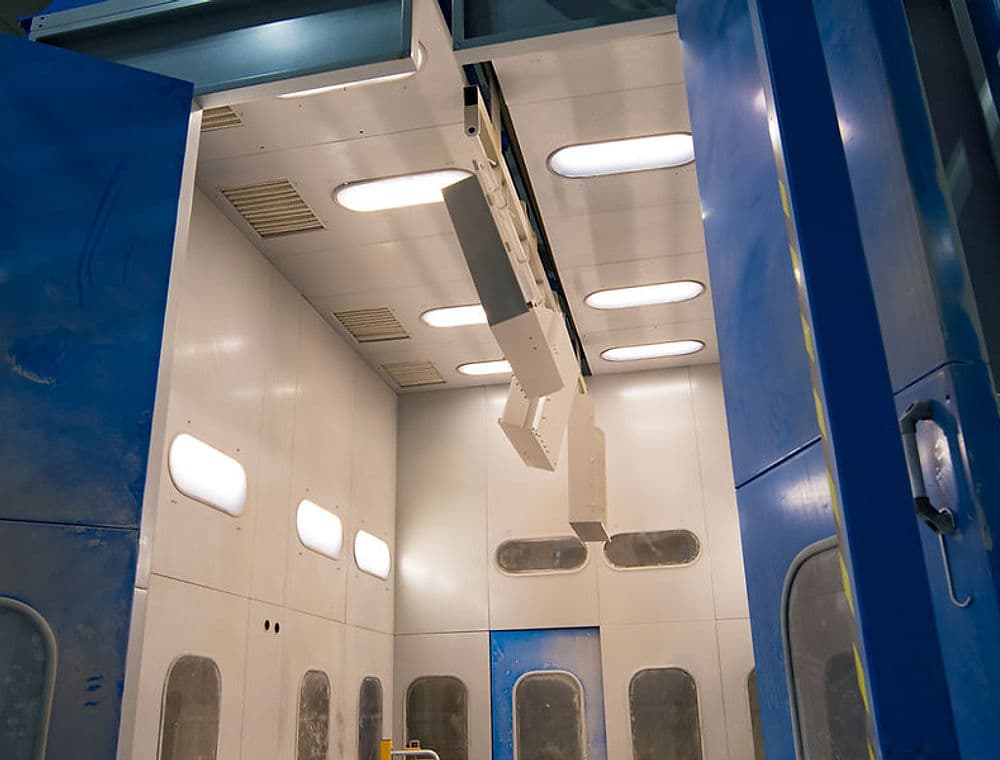

Powder Coating
- 2 × powder coating systems
- up to 4100 × 1600 × 2500 mm, 800 kg

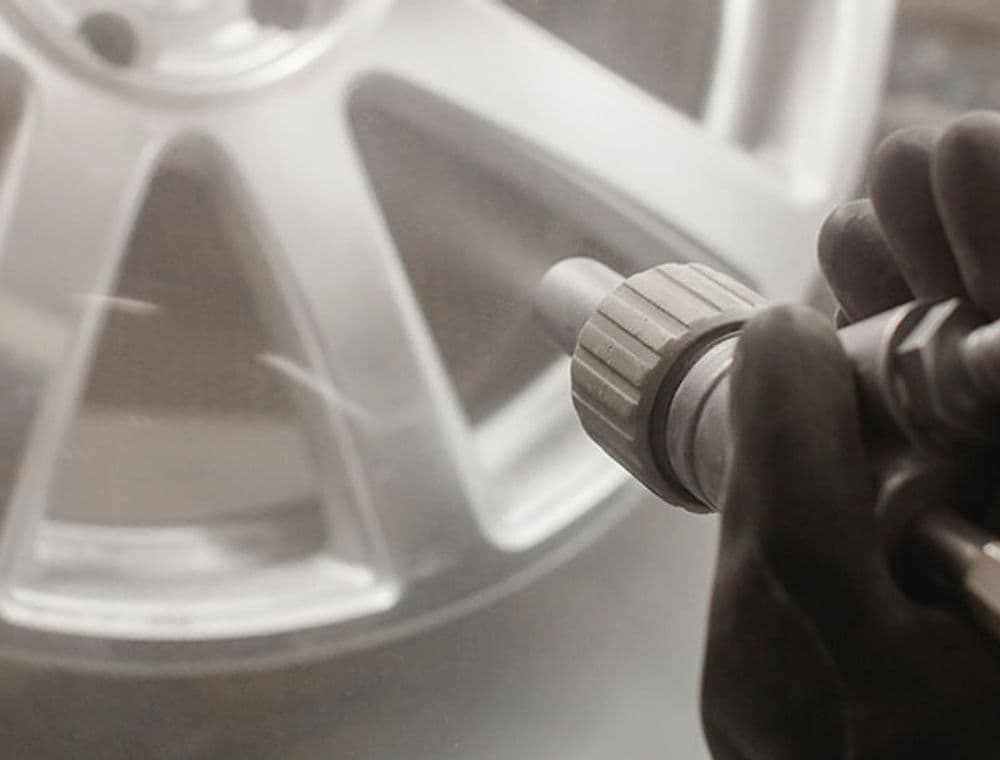

Blasting
- Blasting systems

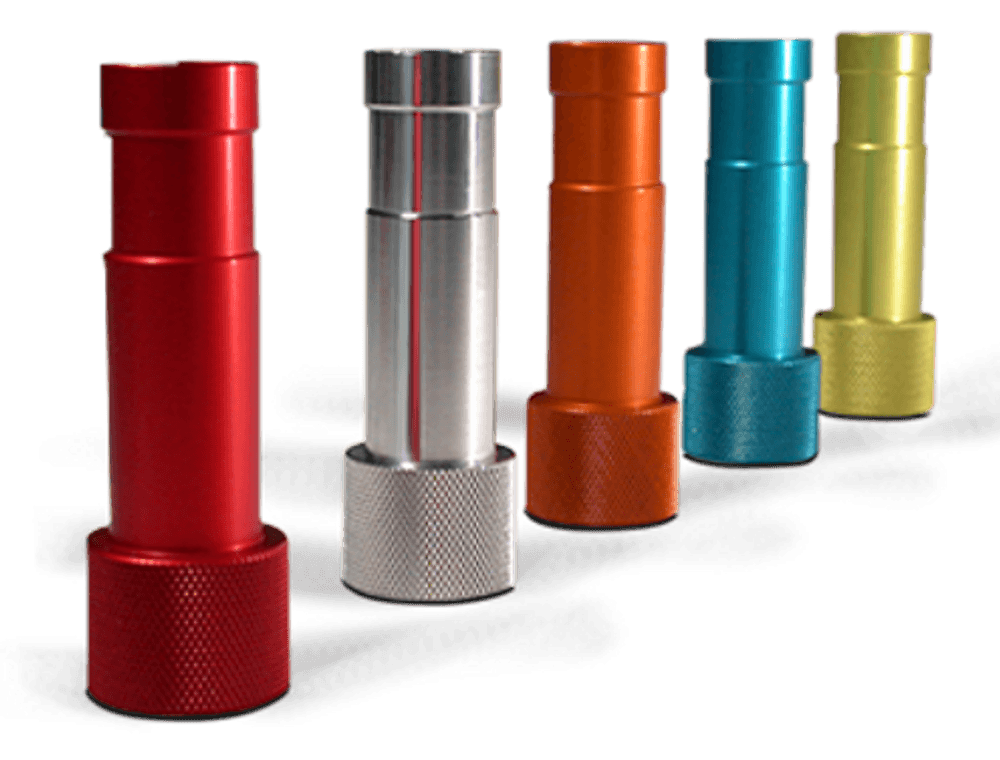

Anodization
Measurement and testing
Dimensional inspection, leak testing to vacuum-industry levels, and clean assembly.
Measurement

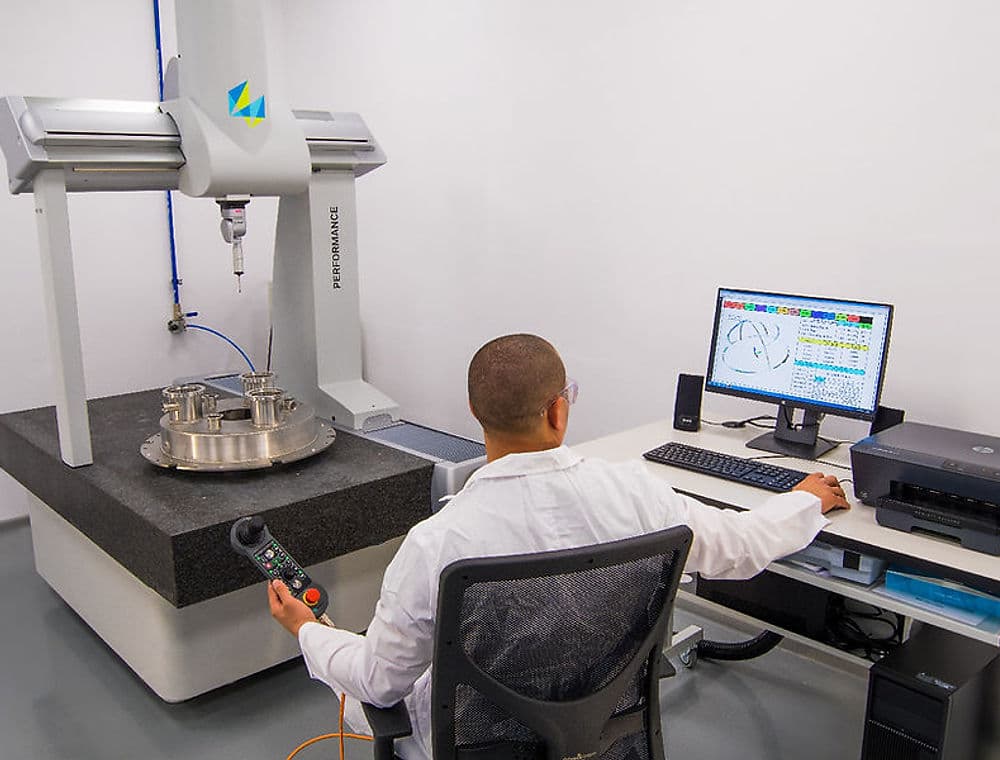

- Hexagon DEA Global CMM
- Romer Absolute Arm
- Surface roughness measurement
Testing

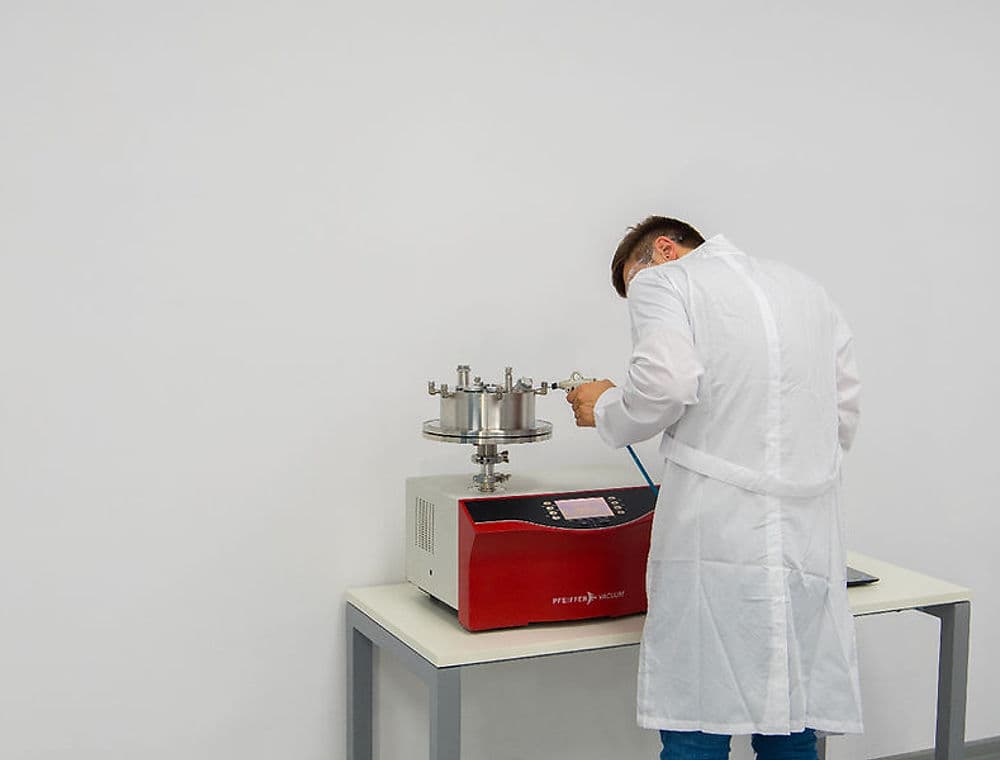

- Pfeiffer Vacuum helium leak tester
- Vacuum leak detection equipment
- Water-pressure testing

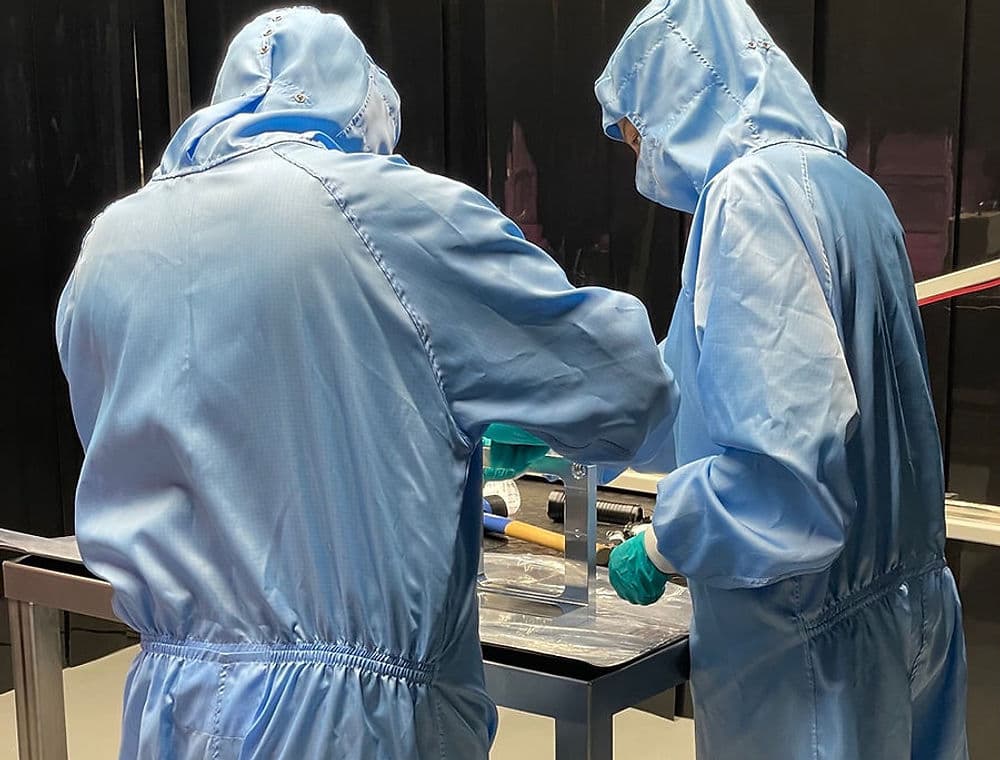

Cleanroom
- ISO 6 clean room assembly
Machine list current as of the last plant review. Ask us for the full machine list with working envelopes — it is part of the Supplier Onboarding Package.
Does your part fit our machine park?
Send a drawing and we will tell you which processes it needs, what it costs and how quickly we can deliver.
